Matlab全球气温的陆地海洋单独展示和一张图里多个Colorbar

转载：

本文作者：波哥
2 Z- j9 Y) }. E+ T* u

工作单位：中国海洋大学海洋与大气学院

联系邮箱：916490285@qq.com

[C] 纯文本查看 复制代码

clc;clear;close all
ncdisp 'F:/RMatlab/data20211219/data46/air.mon.mean.nc';%查看气温数据中的变量
file_air='F:/RMatlab/data20211219/data46/air.mon.mean.nc';
lon=double(ncread(file_air,'lon'));% 直接双精度读取；
lat=double(ncread(file_air,'lat'));% 直接双精度读取；
T2_air=double(ncread(file_air,'air'));% 直接双精度读取；
T2_mean=nanmean(T2_air,3);% 对时间求平均

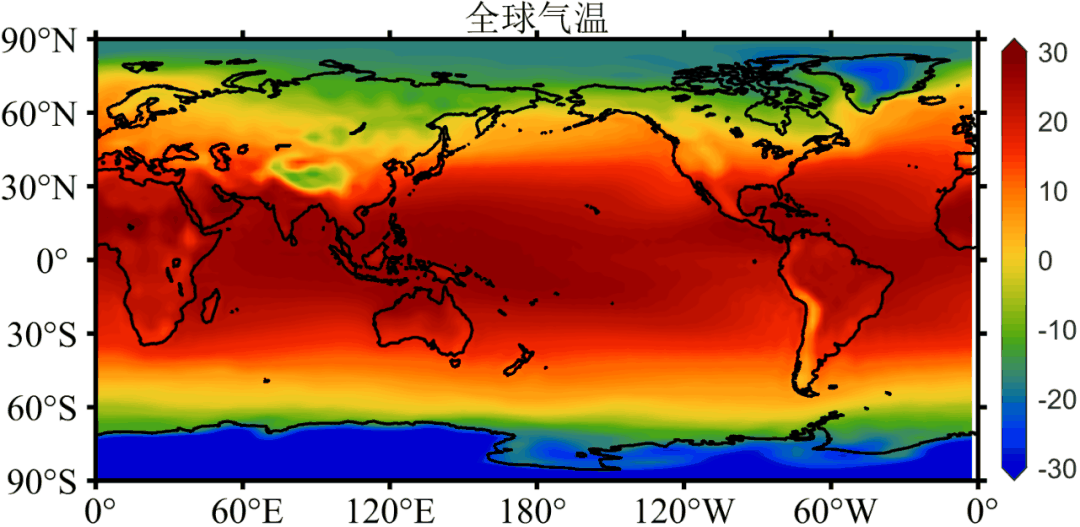

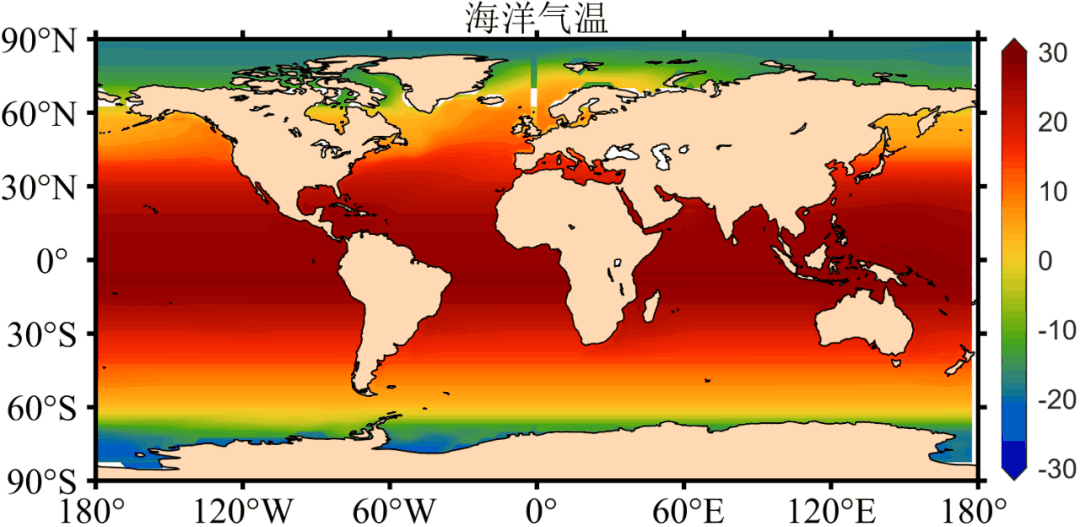

% land.nc
%找出陆地和海洋的经纬度，想画陆地上的气温，就把海洋上的气温设为nan,反之成立；
file_land='F:/RMatlab/data20211219/data46/land.nc';% 关键陆地文件；1代表陆地，0代表海洋；
ncdisp 'F:/RMatlab/data20211219/data46/land.nc'
land=double(ncread(file_land,'land'));
land=land+1;
land(land==2)=0;
T2=T2_mean.*land;
T2(T2==0)=nan;
[xx,yy]=meshgrid(lon,lat);xx=xx';yy=yy';
%%
figure(1);
m_proj('Equidistant','long',[0,360],'lat',[-90,90]);
% m_proj('miller','lon',180,'lat',[-90 90])
m_contourf(xx,yy,T2,50,'linestyle','none')
% m_pcolor(xx,yy,T2)
% shading interp
% h=m_coast('patch',[0.8 0.8 0.8],'edgecolor','none');
hold on;
% m_gshhs_i('patch',[0.6 0.6 0.6],'edgecolor','k');
% m_coast('color',[0 0 0],'linewidth',1);
m_coast('patch',[1 .85 .7]);
m_grid('ytick',[-90:30:90],'xtick',[0:60:360],'tickdir','out','linest','none','fontname','Times','fontsize',12,'linewidth',1.5);
title('海洋气温','fontsize',12);
c=colorbar('eastoutside','ticklength',0);
caxis([-30,30]);
colormap(m_colmap('jet'));
ax = gca;
axpos = ax.Position;
c.Position(3) = 0.5*c.Position(3);
ax.Position = axpos;
cbarrow;
disp('!!OK!!');

/ g0 J1 g+ t& t3 S; o' o$ K% O( a

! p5 D7 G" r+ u) K1 _0 i
) R1 \, z5 P  ?


) {0 R6 f' Q) W  }, r5 I- n

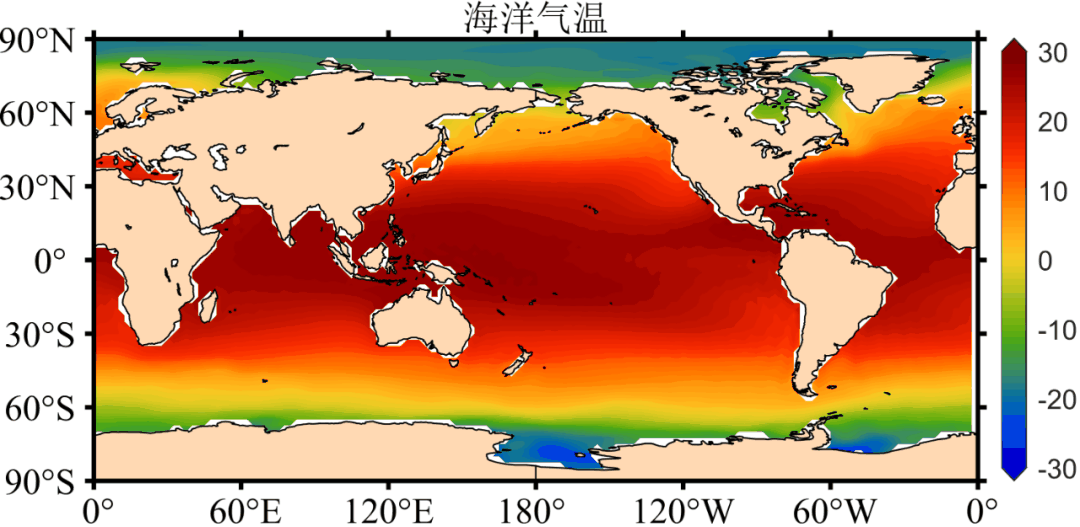

[C] 纯文本查看 复制代码

clc;clear;close all
ncdisp 'F:/RMatlab/data20211219/data46/air.mon.mean.nc';%查看气温数据中的变量
file_air='F:/RMatlab/data20211219/data46/air.mon.mean.nc';
lon=double(ncread(file_air,'lon'));% 直接双精度读取；
lat=double(ncread(file_air,'lat'));% 直接双精度读取；
T2_air=double(ncread(file_air,'air'));% 直接双精度读取；
T2_mean=nanmean(T2_air,3);% 对时间求平均
% land.nc
%找出陆地和海洋的经纬度，想画陆地上的气温，就把海洋上的气温设为nan,反之成立；
file_land='F:/RMatlab/data20211219/data46/land.nc';% 关键陆地文件；
ncdisp 'F:/RMatlab/data20211219/data46/land.nc'
land=double(ncread(file_land,'land'));
T2=T2_mean.*land;
T2(T2==0)=nan;
[xx,yy]=meshgrid(lon,lat);xx=xx';yy=yy';
%%
figure(1);
m_proj('Equidistant','long',[0,360],'lat',[-90,90]);
% m_proj('miller','lon',180,'lat',[-90 90])
m_contourf(xx,yy,T2,50,'linestyle','none')
% m_pcolor(xx,yy,T2)
% shading interp
% h=m_coast('patch',[0.8 0.8 0.8],'edgecolor','none');
hold on;
% m_gshhs_i('patch',[0.6 0.6 0.6],'edgecolor','k');
m_coast('color',[0 0 0],'linewidth',1);
% m_coast('patch',[1 .85 .7]);
m_grid('ytick',[-90:30:90],'xtick',[0:60:360],'tickdir','out','linest','none','fontname','Times','fontsize',12,'linewidth',1.5);
title('海洋气温','fontsize',12);
c=colorbar('eastoutside','ticklength',0);
caxis([-30,30]);
colormap(m_colmap('jet'));
ax = gca;
axpos = ax.Position;
c.Position(3) = 0.5*c.Position(3);
ax.Position = axpos;
cbarrow;
disp('!!OK!!');

3 ], n( \# k. p7 c

+ D& G3 f% N. W; [* \7 @; S: |

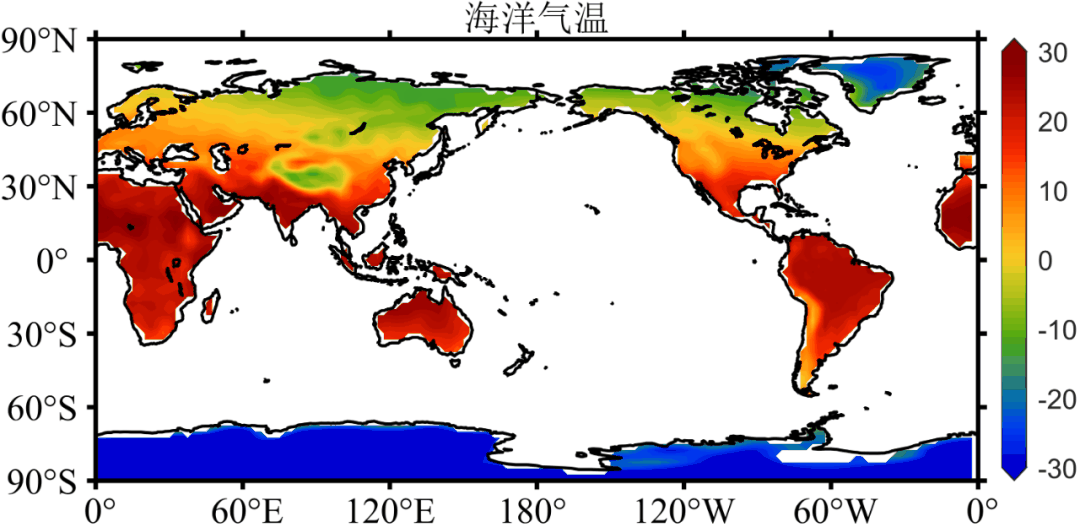

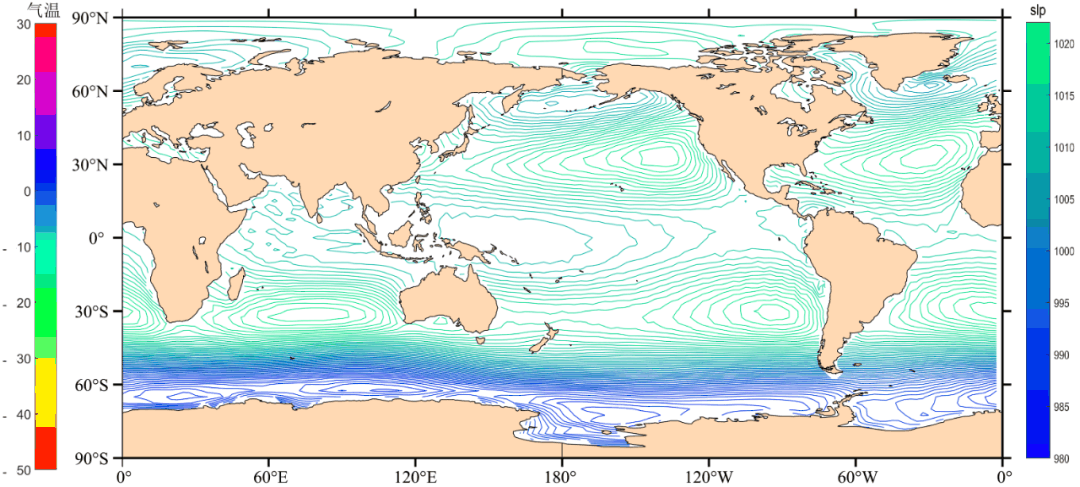

[C] 纯文本查看 复制代码

clc;clear;close all
ncdisp 'F:/RMatlab/data20211219/data46/air.mon.mean.nc';%查看气温数据中的变量
file_air='F:/RMatlab/data20211219/data46/air.mon.mean.nc';
lon=double(ncread(file_air,'lon'));% 直接双精度读取；
lat=double(ncread(file_air,'lat'));% 直接双精度读取；
T2_air=double(ncread(file_air,'air'));% 直接双精度读取；
T2_mean=nanmean(T2_air,3);% 对时间求平均
%找出陆地和海洋的经纬度，想画陆地上的气温，就把海洋上的气温设为nan,反之成立；
file_land='F:/RMatlab/data20211219/data46/land.nc';% 关键陆地文件；1代表陆地，0代表海洋；
ncdisp 'F:/RMatlab/data20211219/data46/land.nc'
land=double(ncread(file_land,'land'));
T2=land.*T2_mean;
T2(T2==0)=nan;
ncdisp 'F:/RMatlab/data20211219/data46/hgt.mon.mean.nc'% 查看位势高度数据中的变量
file_hgt='F:/RMatlab/data20211219/data46/hgt.mon.mean.nc';% 查看海温数据中的变量
hgt=double(ncread(file_hgt,'hgt'));
level=double(ncread(file_hgt,'level'));
hgt=squeeze(nanmean(hgt(:,:,3,:),4));%对时间求平均，并且取850hpa的位势高度场；
file_u='F:/RMatlab/data20211219/data46/uwnd.mon.mean.nc';
file_v='F:/RMatlab/data20211219/data46/vwnd.mon.mean.nc';
u=double(ncread(file_u,'uwnd'));
v=double(ncread(file_v,'vwnd'));
% ncdisp 'slp.mon.mean.nc';%'Sea Level Pressure'
file_slp='F:/RMatlab/data20211219/data46/slp.mon.mean.nc';
slp=double(ncread(file_slp,'slp'));
slp=nanmean(slp,3);
land=land+1;
land(land==2)=0;
slp=slp.*land;
slp(slp==0)=nan;
u=u.*land;
u(u==0)=nan;
v=v.*land;
v(v==0)=nan;
[xx,yy]=meshgrid(lon,lat);xx=xx';yy=yy';
%%
fig_pos = [0.2 0.02 0.53 0.8];
figure(1);
m_proj('Equidistant','long',[0,360],'lat',[-90,90]);
ax1 = axes;
set(ax1,'position',fig_pos);
% m_pcolor(xx,yy,T2);% 陆地气温
m_contourf(xx,yy,T2,100,'linestyle','none')
shading interp
colormap(ax1,'hsv');
ax1_h=colorbar(ax1,'Position',[.07 .1 .02 .55]);
set(get(ax1_h,'Title'),'string','气温','fontsize',12);
caxis([-50 30])% min(min(T2)) max(max(T2))
% m_coast('color',[0 0 0],'linewidth',0.2);
m_coast;
m_grid('ytick',[-90:30:90],'xtick',[0:60:360],'tickdir','out','linest','none','fontname','Times','fontsize',12,'linewidth',1.5);
hold on
ax2 = axes;
set(ax2,'position',fig_pos);
m_contour(xx,yy,slp,50);% 陆地气温,'linestyle','none'
% m_pcolor(xx,yy,slp);% 陆地气温
% shading interp
colormap(ax2,'winter');
caxis([980 1022])% min(min(slp)) max(max(slp))
% m_coast('color',[0 0 0],'linewidth',0.2);
% m_coast;
m_grid('ytick',[-90:30:90],'xtick',[0:60:360],'tickdir','out','linest','none','fontname','Times','fontsize',12,'linewidth',1.5);
ax2_h=colorbar(ax2,'Position',[.75 .15 .02 .6]);
set(get(ax2_h,'Title'),'string','slp','fontsize',12);
% saveas(gca,'两个colorbar3.png')
%%
figure(2);
fig_pos = [0.09 0.15 0.53 0.75];
m_proj('Equidistant','long',[0,360],'lat',[-90,90]);
ax1 = axes;
set(ax1,'position',fig_pos);
m_pcolor(xx,yy,T2);% 陆地高程
shading interp
colormap(ax1,'jet');
caxis([-50 30])
m_coast('patch',[1 .85 .7]);
m_grid('ytick',[-90:30:90],'xtick',[0:60:360],'tickdir','out','linest','none','fontname','Times','fontsize',12,'linewidth',1.5);
% freezeColors
ax2 = axes;
set(ax2,'position',fig_pos);
% m_contourf(lon,lat,sst','linestyle','none','levelstep',.1);
pc = m_contourf(xx,yy,slp,10);% 海表温度
% set(pc,'linestyle','-');
colormap(ax2,'hsv');
caxis([980 1022])% min(min(slp)) max(max(slp))
m_coast('patch',[1 .85 .7]);
m_grid('ytick',[-90:30:90],'xtick',[0:60:360],'tickdir','out','linest','none','fontname','Times','fontsize',12,'linewidth',1.5);
cb1 = colorbar(ax1,'Position',[.65 .15 .02 .6]);
cb2 = colorbar(ax2,'Position',[.74 .15 .02 .6]);
